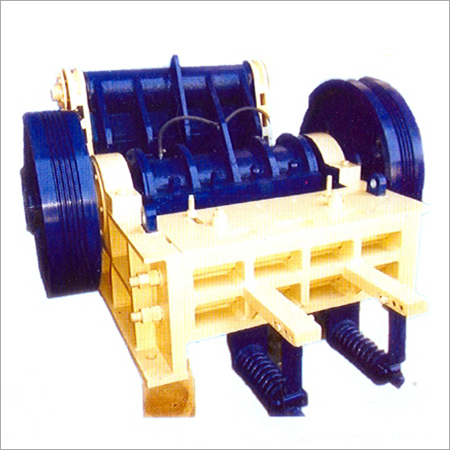

Double Toggle Grease Type Crusher

Next > >

<< Previous

Send Inquiry

Product Code : 07

Product Description

As per the enormous requirement of clients, we provide our precious clients an extensive range of Double Toggle Grease Type Crusher. It is manufactured with the perfection and care by utilizing optimum quality materials and modern technologies. This is the preferred for crushing ususually hard, abrasive rocks and other materials like ferroalloys and glass. Available in different technical specifications, this Double Toggle Grease Type Crusher can be purchases from us at industry leading prices

Features:

Negligible maintenance
User-friendly interface
Hassle-free working

Primary
Crusher Model	Feed size in inches (max)	Discharge of opening inches	Average TPH	Power required in HP	Weight in tons	Speed R.P.M
24x12	10	1-3	28-56	40	7.600	320-340
30x20	17	2-4	45-90	100	13.500	300-320
36x24	20	4-7	110-190	125	23.000	260-280
42x30	25	4-8	130-250	150	28.000	240-260
48x36	30	5-9	180-320	200	42.000	200-220
60x48	40	7-11	325-500	325	70.000	200-220
Secondary
36x08	7	1-2	26-52	50	8.750	340-360
42x09	8	1.25-2.50	35-70	60	11.800	340-360
48x09	9	1.25-2.50	40-80	75	13.650	340-360
