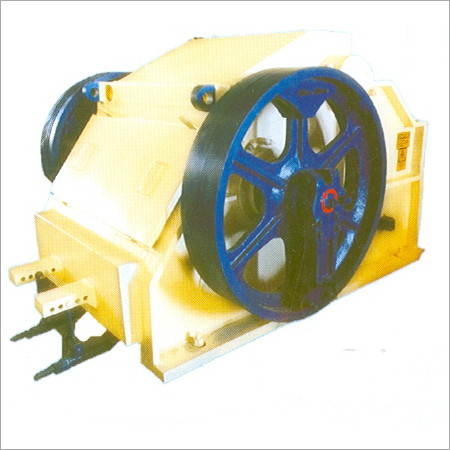

Double Toggle Oil Lubricated Crusher

Next > >

Send Inquiry

Product Code : 04

Product Description

Over the past 12 years, we have gained the reputed position in the market as a well-renowned manufacturers and suppliers of a supreme quality range of Double Toggle Oil Lubricated Crusher. Offered crusher is manufactured by making use of premium quality materials and ultra modern technology under the supervision of our diligent team. This applies a large amount of energy to crush material and thatâ€™s why itâ€™s one of the most versatile crusher configurations today. In addition, offered Double Toggle Oil Lubricated Crusher is available in numerous technical specifications at industry leading price.

Features:

Operational fluency
High performance
Low power consumption

Jaw crusher Size		Recommended		Capacity in tons/hour with jaw closed side setting																RPM	Drive HP	Approx Total w.t
Mm	Inch	Feed (m.m)	Size (inch)	20mm/0.75	25mm/1	31mm/1.25	37mm/1.5	50mm/2	62mm/2.5	75mm/3	87mm/3.5	100mm/4	125mm/5	150mm/6	175mm/7	200mm/8	225mm/9	250mm/10	275mm/11
500x300	20x12	240	11				27	31	39	47										320/340	30	4.600
600x300	24x12	250	10				28	37	46	56										320/360	35	5.800
600x350	24x14	300	12				28	37	46	56	65									320/360	35	5.900
750x375	30x15	325	13					46	58	70	81	93								300/320	40	9.100
750x500	30x20	450	18							70	81	93	116	139						300/320	50	11.800
750x600	30x24	525	21									93	116	139						260/280	60	13.700
900x500	36x20	425	17									112	139	167	195					260/280	60	16.400
900x600	36x24	525	21									112	139	167	195					260/280	70	21.000
900x750	36x30	675	27									112	139	167	195	220				240/260	90	24.200
1050x750	42x30	675	27									130	162	195	228	255				240/260	100	34.000
1050x900	42x36	800	32									130	162	195	228	255	287			240/260	125	35.000
1200x375	48x15	325	13							112	129	149	185	220	260					260/280	150	15.900
1200x750	48x30	375	27										185	220	260	290	325			240/260	200	39.500
1200x900	48x36	800	32										185	220	260	290	405	444	500	240/260	30	42.500
1500x1200	60x48	1100	44	13	16	20	24	32	40						325	361				240/260	40	72.000
550x225	22x09	200	8	18	22	27	33	44	55											320/360	40	4.300
750x225	30x09	200	8	19	23	29	35	47												320/360	40	6.300
800x150	32x06	125	5	19	23	29	35	47												360/375	40	6.500
800x200	32x08	175	7	21	26	33	39	52												320/360	40	6.900
900x150	36x06	125	5	21	26	33	39	52												360/375	40	7.000
900x200	36x08	175	7	25	31	39	46	61												320/360	40	8.000
1050x150	42x06	125	5	25	31	39	46	61	76											360/375	50	9.500
1050x225	42x09	200	8	28	35	44	52	69												320/360	50	10.000
1200x150	48x06	125	5	28	35	44	52	69												360/375	60	11.500
1200x200	48x08	175	7	35	44	55	65	87												320/360	60	11.800
1500x200	60x08	175	7																	320/360	75	16.500
