Hydraulic Compactor

Send Inquiry

Product Code : 14

Brand Name : AURIGA MACHINERY

Product Description

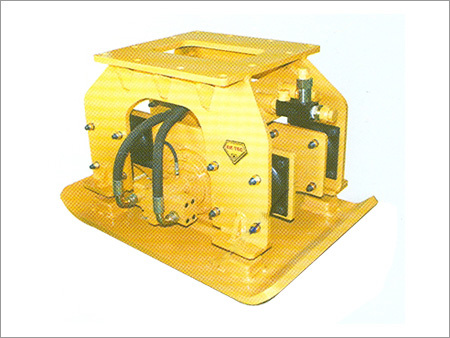

Hydraulic Compactor

We are a fastest emerging company with notable track record in manufacturing a complete range of Hydraulic Compactor. Manufactured using premium grade raw materials, these compactors allows for installation on any carriers using an adapter and quick couplers. Our offered Hydraulic Compactor is available in wide range of different specifications to meet diverse industrial requirements. All the compactors are in compliance with the industrial standards and norms. Our clients can avail these compactors from us at affordable prices.

Product Features:

Economical Charges
Excellent Operational Control
Flawless Quality & Higher Functional Life
High Durable, Reliable & Long Life

Technical Specification

Description	Unit	OKVC 30	OKVC 60	OKVC 80	OKVC 100	OKVC 120
Impulse Force	ton	2~3	5~6	7~8	9~10	11~13
Impact Rate	bpm	2,400	2,300	2,200	2,000	2,000
Operating Pressure	bar	90~130	100~140	120~160	130~170	150~190
Oil Flow	lpm	60~80	80~110	110~140	130~160	150~170
Base Plate Dimension	mm	830 x 600	850 x 660	1,100 x 750	1,250 x 950	1,300 x 1,000
Operating Weight	kg	360	510	880	1,288	1,580
Suitable Machine	ton	2~8	8~17	18~26	28~35	33~45
