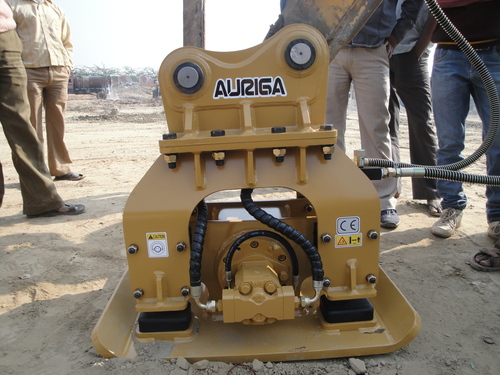

Hydraulic Plate Compactor

Next > >

<< Previous

Send Inquiry

Product Code : 03

Brand Name : AURIGA MACHINERY

Product Description

We are one of the leading manufacturers, exporters and suppliers of a supreme quality range of Hydraulic Plate Compactor that is extensively used for mixed soil, sand and gravel in narrow trenches. Offered compactor is manufactured in order to meet the set international standards using sophisticated technology and quality approved raw material to ensure its excellent performance. This compactor is widely used in the construction and mining industries for soil compaction in slope or foundation areas. In additionally, this Hydraulic Plate Compactor can be availed from us in different specification to our clients.

Features:

Less maintenance
Trouble free operation
Longer service life
Robust construction

Specification

Description		OKVC 30	OKVC 60	OKVC 80	OKVC 100	OKVC 120
Impulse Force	kg	2~3	5~6	7~8	9~10	11~13
Impact Rate	bpm	2,400	2,400	2,400	2,400	2,400
Operating Pressure	bar	100~130	120~150	140~180	150~210	150~210
Oil Flow	lpm	60	120	150	160	170
Base Plate Dimension	mm	800 x 500	850 x 600	1,100 x 750	1,250 x 850	1,250 x 850
Operating Weight	kg	300	675	800	925	1,050
Compact Area	m3	0.2	0.6	0.8	1.0	1.2
Suitable Machine	ton	2~7	8~17	18~26	28~30	28~40
